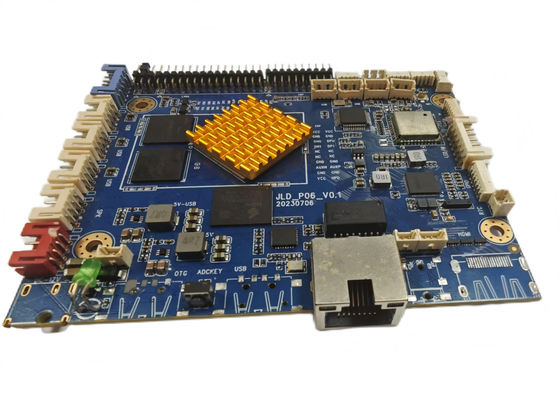

Embedded System Motherboard for KIOSK Applications
This high-performance embedded system motherboard with Mali-T764 GPU provides reliable computing power for self-service terminals. Designed for KIOSK applications requiring WiFi internet access and TTL/RS232 serial connectivity, it delivers stable operation across retail, government, ticketing, and medical environments.
Core Performance Features
The motherboard excels in graphics processing and computational performance, featuring the Mali-T764 GPU with efficient parallel computing capabilities. This supports complex graphics rendering and high-definition display output for demanding interactive applications.
Memory & Storage Configuration
Available in 2G/4G LPDDR3 memory options, with the 4G version enabling seamless multitasking for simultaneous user operations, data transmission, and background processing. Storage options range from 16G to 128G EMMC, allowing flexible configuration based on application requirements.
Power & Design Architecture
Operating on standard DC12V input, this compact embedded motherboard features low power consumption and efficient thermal management. The small form factor (100mm × 80mm) enables easy integration into space-constrained self-service terminal enclosures.
Display Interface Capabilities
Supporting both LVDS and EDP display interfaces, this motherboard offers flexible connectivity options. LVDS provides industrial-grade reliability with strong anti-interference capabilities, while EDP delivers superior bandwidth for high-definition interactive displays.
Communication Interfaces
Equipped with TTL and RS232 dual serial port configurations, the board accommodates diverse communication needs. TTL facilitates short-distance board-to-board data transmission, while RS232 enables long-distance communication with external devices including host computers and sensors.
Technical Specifications
| Product Name |
Embedded System Motherboard |
| PCB Size |
100mm × 80mm |
| Memory |
2G/4G LPDDR3 Option |
| Power Supply |
DC12V3A Input |
| Wireless Connectivity |
2.4G/5G WiFi BT |
| Touch Panel Interface |
I2C / USB Interface TP |
| Brand Name |
JEWELLED |
| Model Number |
JLD-P06 |
Additional Technical Capabilities
The motherboard supports advanced graphics display requirements and smoothly renders data visualization interfaces. Comprehensive connectivity includes RS485, USB, and Ethernet interfaces for versatile system integration.
Development & Compatibility
Compatible with mainstream embedded operating systems including Linux and Android. Complete SDK development kits and comprehensive technical documentation enable secondary development and feature customization for specialized applications.
Application Scenarios
- POS Machines and Retail Checkout Systems
- Electronic Scales and Weighing Systems
- Self-Service KIOSK Terminals
- Government Service Kiosks
- Scenic Spot Ticketing Systems
- Medical Registration Terminals

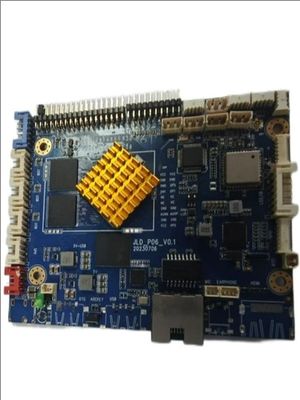

Product Visuals
Frequently Asked Questions
What is the brand name of the POS Motherboard product?
The brand name is JEWELLED.
What is the model number of the POS Motherboard product?
The model number is JLD-P06.
Where is the POS Motherboard product manufactured?
The product is manufactured in China.
What is the minimum order quantity for the POS Motherboard product?
The minimum order quantity is 1pc.
What are the payment terms for purchasing the POS Motherboard product?
The payment terms are T/T.
